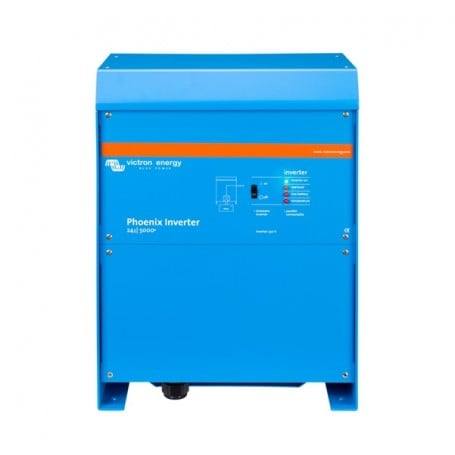

3000VA 48V pure sine converter Phoenix - Victron Energy

• SinusMax - Advanced technology - High instantaneous power

• Multiplied power thanks to parallel and three-phase operation

• Load transfer to another AC source: the automatic switch

€1,005.72 €1,183.20 -15%
VAT included
  Shipping costs to be calculated

Depending on your postal code


Delivered to you in 2/5 days

  Free store pickup

Warehouse - TEYRAN 34820



SinusMax - Advanced technology

Developed for professional use, the range of Phoenix converters is perfectly suited to the most diverse applications. These high-efficiency pure sine wave converters are designed without compromising on performance. The HF hybrid technology provides exceptional characteristics for compact dimensions, reduced weight, and ensures total compatibility regardless of the equipment supplied.

High instantaneous power

SinusMax technology allows very high instantaneous powers, impossible to achieve with conventional high frequency technology. Phoenix converters are therefore well suited for supplying devices that need a high inrush current at start-up, such as refrigeration compressors, electric motors and similar equipment.

Multiplied power thanks to parallel and three-phase operation

Up to 6 converters can operate in parallel to obtain more output power. For example, six 24/5000 units will provide 24 kW / 30 kVA of nominal power. It is also possible to use a three-phase configuration.

Load transfer to another AC source: the automatic switch

If automatic transfer switching is required, we recommend using a MultiPlus converter charger instead. These devices include the switch and the Multiplus charger function can be deactivated. The operation of computers and other electronic equipment will not be disturbed since the MultiPlus benefits from a very fast transfer time (less than 20 milliseconds).

Computer interface

All models have an RS-485 port. All you need for a connection to your PC is our MK2 interface (see accessories below). This interface supports galvanic isolation between the converter and the computer, and provides RS-485 to RS-232 conversion. An RS-232 / USB conversion cable is also available. Thanks to our VEConfigure software, available for free download on our website, all converter parameters can be customized. It is therefore possible to configure the output voltage and frequency, the overvoltage and undervoltage thresholds, and to program the relay. For example, this relay can be used to signal multiple alarm conditions or to start a generator. The converters can also be connected to VENet, Victron Energy's new energy control network, or to other computerized control and management systems.

Data sheet

21 kg
Data sheet
5 years
Battery voltage
48 V
AC output voltage
Puissance de sortie (AC)
Victron Energy
Dimensions (H x L x P)
362 x 258 x 218 mm
Voltage range
38V- 66V
50 Hz
Peak power
Type de signal
Signal type
Standard AC outlets
Bornes à vis
Output short circuit / overload / battery voltage too high / battery voltage too low / temperature too high
Degree of protection
EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
Continuous power at 40 ° C
Max efficiency
No-load consumption
Operating temperature
-40 to + 65 ° C (fan cooling)
Material and color
aluminum (blue RAL 5012)
Battery connection
2 + 2 M8 nuts
Remote on / off switch
Continuous power at 60 ° C
Programmable relay
Port de communication VE.Bus
For parallel or three-phase operation, remote monitoring and system integration
Parallel and three-phase operation
