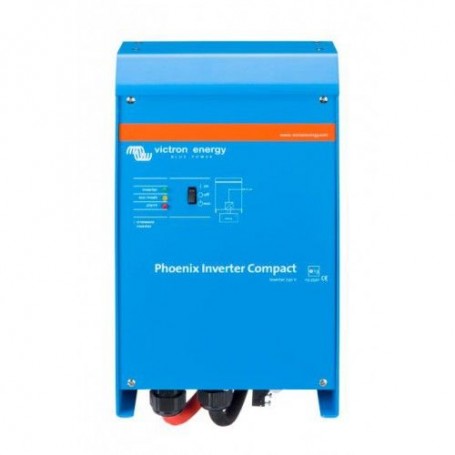

Convertisseur De Tension 24V-230V Phoenix Inverter Compact 24/2000

• SinusMax - Advanced technology - High instantaneous power

• Multiplied power thanks to parallel and three-phase operation

• Load transfer to another AC source: the automatic switch

€889.44 €1,046.40 -15%
VAT included

Description

SinusMax - Advanced technology

Developed for professional use, the range of Phoenix converters is perfectly suited to the most diverse applications. These high-efficiency pure sine wave converters are designed without compromising on performance. The HF hybrid technology provides exceptional characteristics for compact dimensions, reduced weight, and ensures total compatibility regardless of the equipment supplied.

High instantaneous power

SinusMax technology allows very high instantaneous powers, impossible to achieve with conventional high frequency technology. Phoenix converters are therefore well suited for supplying devices that need a high inrush current at start-up, such as refrigeration compressors, electric motors and similar equipment.

Multiplied power thanks to parallel and three-phase operation

Up to 6 converters can operate in parallel to obtain more output power. For example, six 24/5000 units will provide 24 kW / 30 kVA of nominal power. It is also possible to use a three-phase configuration.

Load transfer to another AC source: the automatic switch

If automatic transfer switching is required, we recommend using a MultiPlus converter charger instead. These devices include the switch and the Multiplus charger function can be deactivated. The operation of computers and other electronic equipment will not be disturbed since the MultiPlus benefits from a very fast transfer time (less than 20 milliseconds).

Computer interface

All models have an RS-485 port. All you need for a connection to your PC is our MK2 interface (see accessories below). This interface supports galvanic isolation between the converter and the computer, and provides RS-485 to RS-232 conversion. An RS-232 / USB conversion cable is also available. Thanks to our VEConfigure software, available for free download on our website, all converter parameters can be customized. It is therefore possible to configure the output voltage and frequency, the overvoltage and undervoltage thresholds, and to program the relay. For example, this relay can be used to signal multiple alarm conditions or to start a generator. The converters can also be connected to VENet, Victron Energy's new energy control network, or to other computerized control and management systems.

Data sheet

6217CIN242200000
15 kg
Data sheet
Weight
12
Garantie
5 years
Battery voltage
24 V
AC output voltage
230V
Brand
Victron Energy
Dimensions (H x L x P)
520 x 255 x 125mm
Voltage range
19V- 33V
Frequency
50 Hz
Peak power
4000W
Type de signal
Signal type
Continuous power
1600W
Standard AC outlets
Pince à ressort
protections
Output short circuit / overload / battery voltage too high / battery voltage too low / temperature too high
Degree of protection
95%
IP21
certificates
EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
Continuous power at 40 ° C
1450W
Max efficiency
92%
No-load consumption
11W
Material and color
aluminum (blue RAL 5012)
Battery connection
2 + 2 M8 nuts
Remote on / off switch
Yes
Continuous power at 60 ° C
1000W
Programmable relay
Yes
Port de communication VE.Bus
For parallel or three-phase operation, remote monitoring and system integration
Parallel and three-phase operation
Yes
